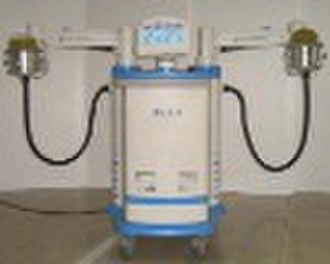

Electromagnetic Shock Wave Orthopedic Therapy Equi

Orthopedic Device Self Features: 1. The therapy machine acts physical and physiological effects on the affected parts of the human body to reach the treatment objective after focusing the electromagnetic shock wave energy; 2. There are two groups of symmetrical and independence application systems in the therapy machine, which can treat two patients of high application efficiency at the same time; 3. The rotation ranges of the electromagnetic wave head on the therapy machine are large enough to fit for illness treatment of various parts and the therapy machine is accurate and convenient to make localization; 4. The figure of the therapy machine is novel and beautiful and the structure is small and delicate, moving smoothly and freely and easy to operate and master. Device Main System: High voltage generating system, high voltage ignition system, high voltage energy storage system, motion control system, motion servo system, electric water circulation system, electric intake and exhaust system, motion system. Shock Wave Type: Electromagnetic Shock Wave Focusing Distance: 110mm Shock Wave Parameters 1. Peak pressure rang of shock wave on focus 6MPa-30MPa 2. Peak value of expansion sound pressure of shock wave on focus is the 20% of compression peak value; 3. Pulse width of shock wave on focus ≤2μs 4. Shock wave front ≤1μs 5. Focusing focal spot range of shock wave: Radial≤±10mm 6. Plane distance from focus to focusing lens port ≥110mm 7. Energy of each shock pulse3-36mJ. Performance Parameters 1. Therapy voltage 6kV-15kV consecutive and adjustable 2. Pulse counting range 0-9999 3. Frequency range for serial triggering 0.4-2.4Hz. Mechanical Parameters 1. Adjusting range of electromagnetic wave head and cover: Spherical rotation±180°Swing≥90° Lifting≥220mm. 2. Adjusting range of front supporting armSwing≥±90° 3. Adjusting range of back supporting armno less than 100°.
