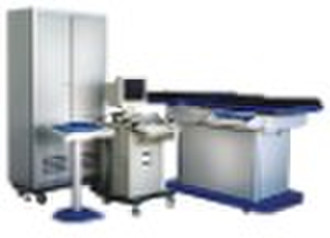

Electromagnetic Extracorporeal Shock Wave Lithotri

Electromagnetic Extracorporeal Shock Wave LithotripterDevice Localization Method: localization by ultrasonic B Device Self Features: 1. Slop movement localization system; 2. Electronic distance measurement system; 3. Success rate of one-off lithotripsy is more than 98%; 4. The service life of shock wave source electromagnetic disc is more than 300 thousand times; 5. Wave source air bubble filtering device to ensure the lithotripsy quality. Device Main Electric Control System: High voltage generating system, high voltage ignition system, high voltage energy storage system, motion control system, motion servo system, electric water circulation system, electric intake and exhaust system. Shock Wave Type: Electromagnetic Shock Wave Focusing Distance: 110mm Shock Wave Parameters Single pulse energy: 60-150mJ Peak pressure of shock wave 20MPa-50Mpa Pulse width of shock wave ≤1μsShock wave front ≤0.5μs Focusing range of shock wave Radial ≤φ7mm Axial ≤±12.5mm. Mechanical Motion Parameters Electromagnetic wave head motion: Longitudinal movement 80mm Lift Range 120mm Oscillation angle: ±20° Slope motion: 080mm Input range of ultrasonic B probe: 050mm Bed lateral movement: 70mm Electric Performance Parameters: Treatment voltage 10kV-18kV continuously adjustable; Frequency range of serial triggering 0.3-2Hz Pulse counting range 0-9999. Single pulse energy: 60-150mJ Peak pressure of shock wave 20MPa-50Mpa Pulse width of shock wave ≤1μsShock wave front ≤0.5μs Focusing range of shock wave Radial ≤±7mm Axial ≤±12.5mm. Mechanical Motion Parameters Bed motion: Transverse 80mm longitudinal 80mm Lift 130mm slope 10° Input range of ultrasonic B probe: 0130mm Electric Performance Parameters: Treatment voltage 10kV-18kV continuously adjustable; Frequency range of serial triggering 0.5-2Hz Pulse counting range 0-9999
