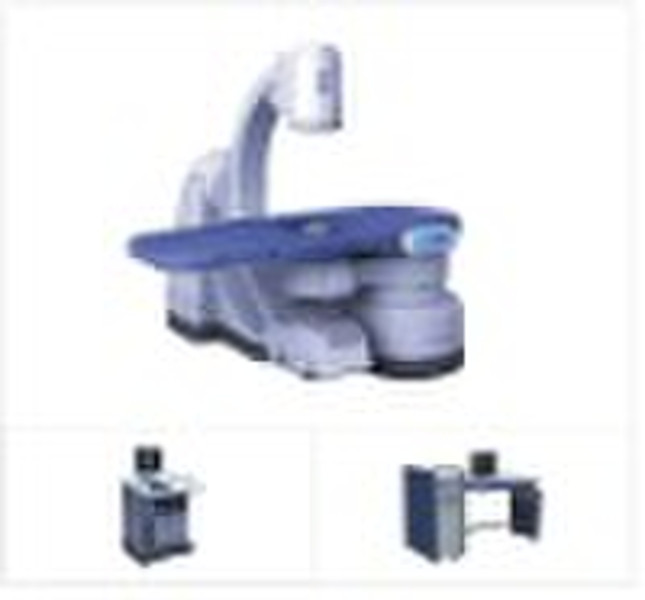

Electromagnetic Extracorporeal Shock Wave Lithotri

Lithotripter Device Localization Methods: Double localization with X-ray and ultrasonic B Device Self Features: 1.Win multiple national patents; 2.360°rotary ultrasonic B localization device; 3.X-ray and shock wave enter into body through the same channel; 4.Multi- functional therapy bed; 5.Wave source air bubble filtering device to ensure the lithotripsy quality; 6. Absolute homoeothermic protection water circulation device; 7.Success rate of one-off lithotripsy is more than 98%; 8.The service life of shock wave source electromagnetic disc is more than 300 thousand times. Device Main Electric Control System: High voltage generating system, high voltage ignition system, high voltage energy storage system, motion control system, motion servo system, electric water circulation system, electric intake and exhaust system, X-ray localization control system. Shock Wave Type: Electromagnetic Shock Wave Focusing Distance: 130mm Shock Wave Parameters Single pulse energy: 60-150mJ Peak pressure of shock wave 20MPa-50Mpa Pulse width of shock wave ≤1μsShock wave front ≤0.5μs Focusing range of shock wave Radial ≤±7mm Axial ≤±12.5mm. Mechanical Motion Parameters Bed motion: Transverse 80mm longitudinal 80mm Lift 130mm slope 10° Big C-arm oscillation angle: 30° Input range of ultrasonic B probe: 0130mm Electric Performance Parameters: Treatment voltage 10kV-18kV continuously adjustable; Frequency range of serial triggering 0.5-2Hz Pulse counting range 0-9999.
